FEP Insulated Round Wire (type K/E/N/T/J)

Basic Info

Model NO.	K/E/N/T/J
Type	Insulated
Conductor Type	Solid
Application	Overhead, Heating, Underground
Conductor Material	Chromel Alumel
Sheath Material	FEP
Insulation Material	FEP
Material Shape	Round Wire
Range of Application	Mine
Certification	ISO9001, CE, RoHS
Diameter	0.2~1.5mm
Types	K
Temperature Range	-200~1200
Samples	Available
Transport Package	Roll/Wooden Case
Specification	0.2-3.2mm
Trademark	Ualloy
Origin	Zhejiang China
HS Code	9025900090
Production Capacity	10000m/Week

Product Description

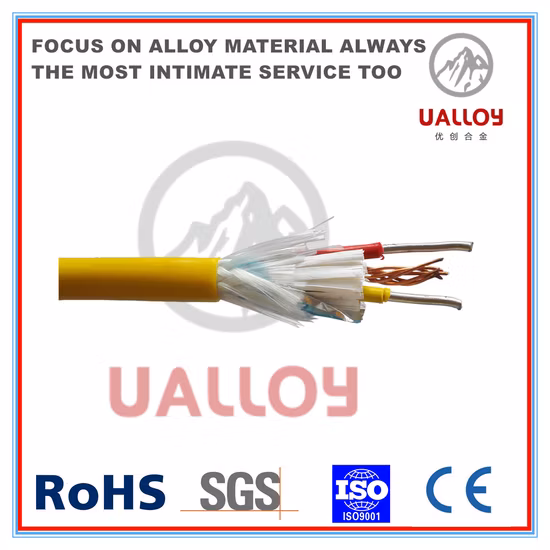

FEP insulated round wire (type K/E/N/T/J)

The products is manufactured according to the standards of GB/T4989-1994 "Compensating Wire forThermocouples" and JB/T7495-1994 "Compensating Cable for Thermocouples". This kind of products are mainly used as the connect wire in the automatic measure instruments in theelectronic power industry, chemical industry, petroleum industry, metallurgy industry and nationaldefense industry, etc. More details about the product:

Item No.	K-FP-FP-0.5R
Conductor Material	+Chromel, -Alumel
Conductor Dia	0.3mm*7/2
Insulation material	FEP
Insulation color	+ green, -white
Cable Construction	Parallel
Inner Shielding material	/
Jacket material	FEP
Jacket color	green
Outer Shielding Material	/
Ground wire	/
Cable Dielectric Test	DC.500v
Net weight	25kg/km

A link to the thermocouple bare wire:http://ualloy.en.made-in-china.com/product/gXZEpDfuAskO/China-China-Supply-K-Type-Wire.html
